Description
Thermal Master Thor 002 is a handheld thermal imager built for inspection work across electrical, HVAC, and industrial environments.
This model is optimized for general inspection without the macro lens.
Main Features
- 256 × 192 IR resolution with super resolution 512 × 384
- NETD < 40 mK and accuracy ±2°C or ±2%
- 3.5 inch IPS display and 25 Hz refresh rate
- Wireless transfer and PC based analysis support
Accessories
- Thor 002 thermal imager
- Charging cable
- Carry case
- User manual
Applications
Common use cases include:
- Electrical panels and connections
- HVAC performance checks
- Industrial maintenance and equipment monitoring
- General inspection workflows
Handheld thermal imager for general inspection
Specification
- IR resolution: 256 × 192

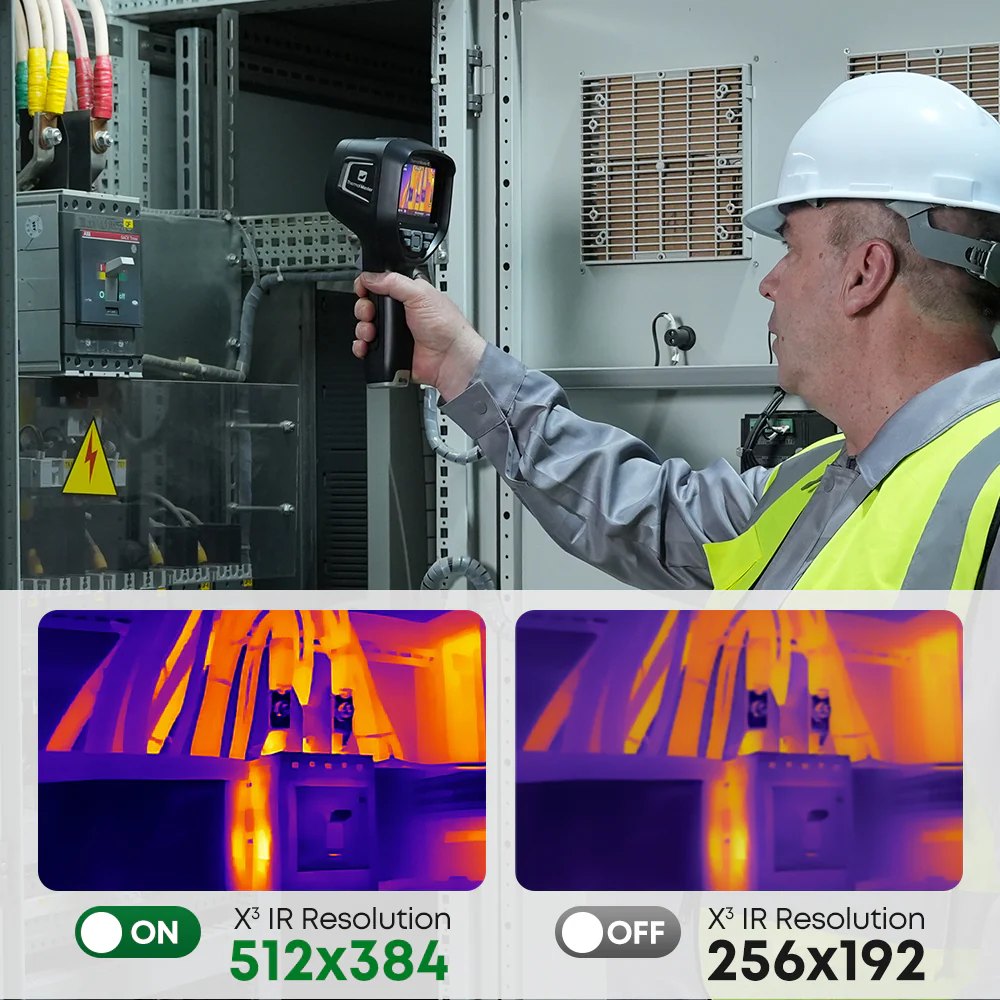

- Super IR resolution: 512 × 384
- Display: 3.5 inch IPS (640 × 480)
- Digital zoom: 2× and 4×

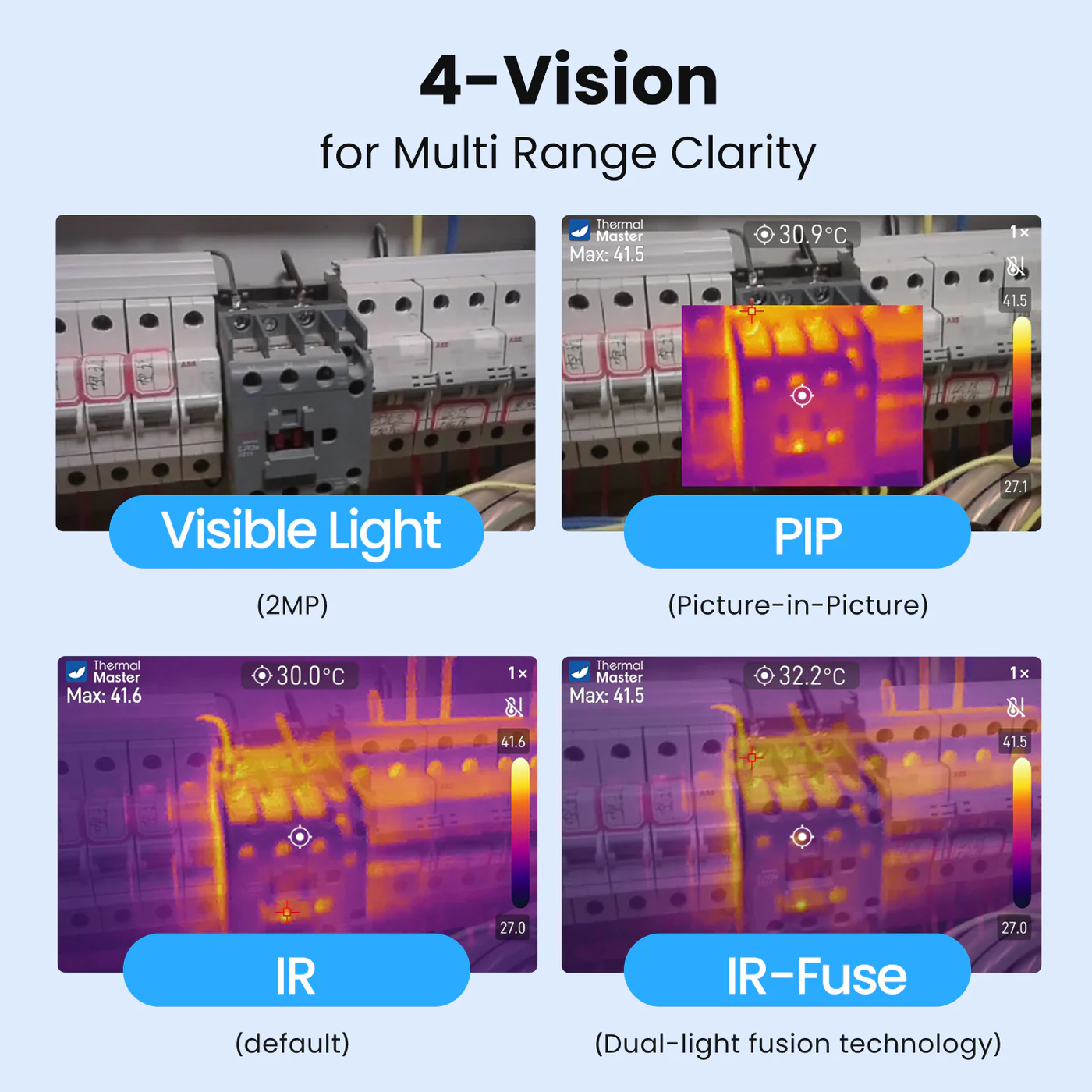

- Image modes: Fusion, IR, PIP, Visual
- Digital camera: 2 MP
- NETD: < 40 mK
- Accuracy: ±2°C or ±2%
- Min focus distance: 30 cm
- Refresh rate: 25 Hz
- FOV: 40° × 30°
- Battery: 5000 mAh, up to 8 h
