Description

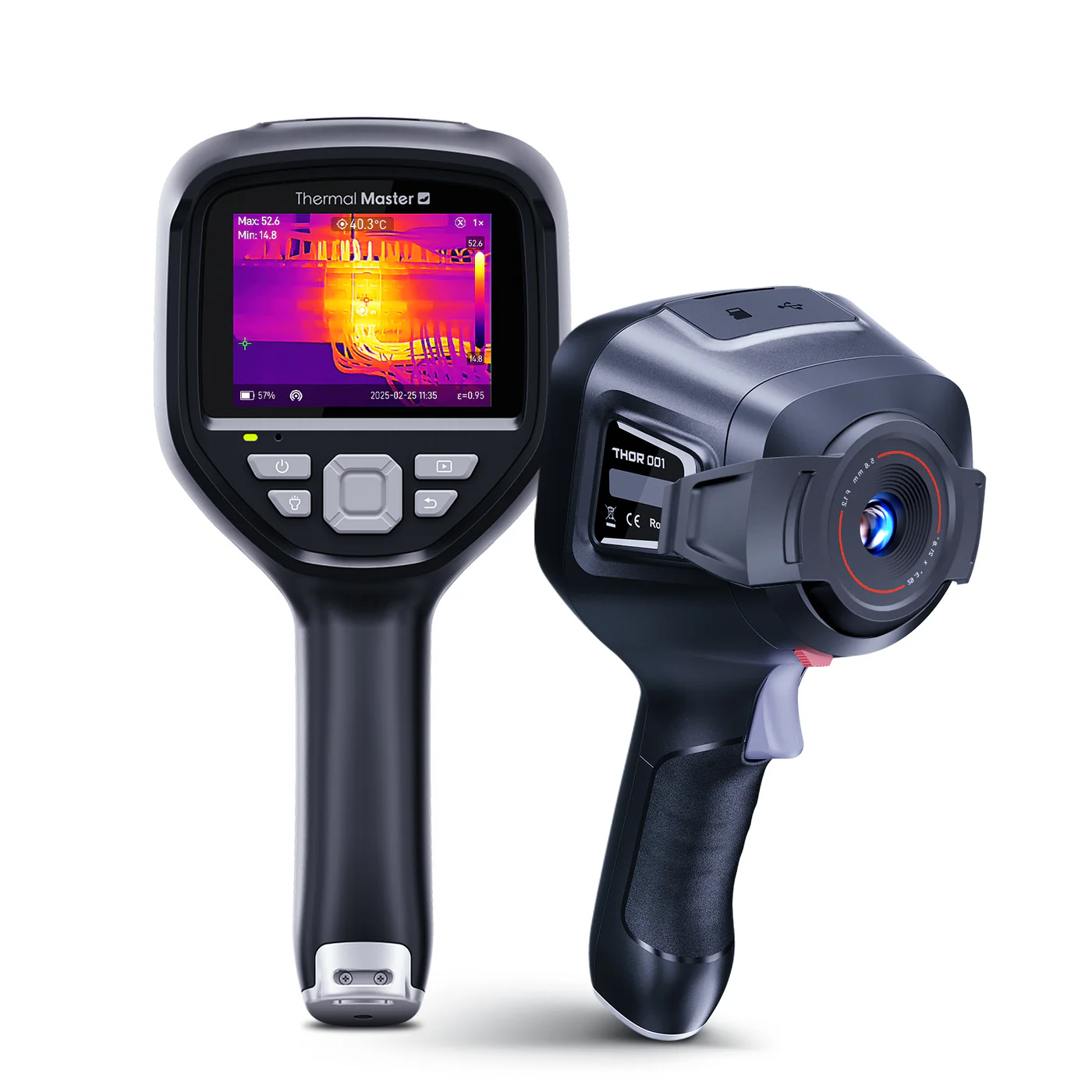

Thermal Master Thor 001 is a handheld thermal imager built for inspection work across electrical, HVAC, and industrial environments.
This model includes a macro lens for closer focus and improved measurement accuracy.
Main Features
- 256 × 192 IR resolution with super resolution 512 × 384
- Macro lens with 8 cm minimum focus distance
- NETD < 35 mK and accuracy ±1.5°C or ±1.5%
- 3.5 inch IPS display and 25 Hz refresh rate
Accessories
- Thor 001 thermal imager
- Charging cable
- Carry case
- User manual
Applications
Common use cases include:
- Electrical panels and connections
- HVAC performance checks
- Industrial maintenance and equipment monitoring
- Close range inspection and small component checks
Handheld thermal imager with macro lens
Specification
- IR resolution: 256 × 192
- Super IR resolution: 512 × 384
- Display: 3.5 inch IPS (640 × 480)
- Digital zoom: 2× and 4×
- Image modes: Fusion, IR, PIP, Visual
- Digital camera: 2 MP
- NETD: < 35 mK
- Accuracy: ±1.5°C or ±1.5%
- Min focus distance: 8 cm
- Refresh rate: 25 Hz
- FOV: 40° × 30°
- Battery: 5000 mAh, up to 8 h
